The Gx-Digital is a "Hybrid" digitally controlled needle gauge, specially designed to display data from either Innovate Motorsports' MTS serial data-stream or, 0-to-5 volt analog sources.

   It is available in a variety of functional face graphic models; for displaying air/fuel ratio, temperature, pressure, and many other functions.  ( see below )

Features:

  Reads data directly form the MTS serial stream. No analog outputs needed.
  One 0-5v analog input channel.  LogWorks 3.02+ compatible
  True high-speed stepper-motor can sweep the full range in 1/5 of a second !
  Programmable illuminated needle and backlighting
  3-level programmable Alarm LED with Relay/Buzzer output line
  Programable button & status LED eliminate extra wiring for LC-1 installations
  Recording indicator LED shows recording state of the MTS chain
  Programmable needle speed and acceleration settings

            Download the manual ( PDF format ) by clicking here.

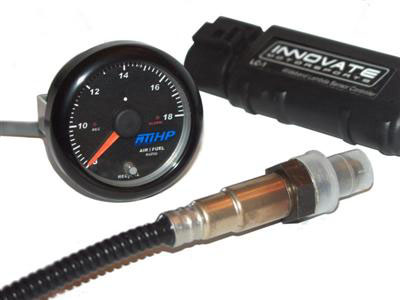

LC-1: Digital Wideband O2 Controller and Sensor kit.

Innovate Motorsports' LC-1 is the only true digital wideband controller made for permanent installations.  The Gx-Digital is specifically designed to work directly with the LC-1 in its fully digital mode.  No analog inputs/outputs are used to read AFR/Lambda.

Includes: LC-1 controller, Oxygen Sensor, Mounting hardware, LogWorks software, and serial data cable.

GX01-RP1: 30-Amp relay output kit for Gx-Digital gages

Range  : 30 Amps

  The GX01-RP1 kit extends the current handling capacity of the Gx-Digital's  alarm output from 150mA to 30A.  It also has contacts for both normally-openand normally-closed operation.  It has the correct coil impedance to operate with the Gx-Digital in the normal automotive 12-volt range. Works with all variants of the Gx-Digital gage.

Includes:

     1. 30-Amp relay w/ N.O. and N.C. contacts
     1. Relay coil wiring *
     1. Crimp connectors set
     1. Installation instructions sheet

Download the manual ( PDF format ) by clicking here.

  * For currents higher than 10-amps, heavier gage wire is required on the contacts side.

MAP3 : MAP3Universal3 bar Manifold Pressure Sensor ( 30psi boost )

Range  : -30"Hg vacuum to 30psi boost ( 0 to 3bar absolute )

Download the manual ( PDF format ) by clicking here.

T250: T250 Fluid & Air temperature Sensor

Range  : 0°F to 250°F ( -18°C to 121°C )

  The T250 is a sensor for coolant,oil, and air temperature monitoring.  It has a 0 to 5-volt output over a range of 0°F to 250°F ( -18°C to 121°C ).  It can operate on either 5-volt or 12-volt power.

  The threads are standard 1/2"x13TPI

MP100:  Pressure Sensor 100psi ( oil, fuel, coolant )

Range  : 0psi to 100psi


     The MP100 is a 0-100psi (psig) pressure sensor for use with Fuel, Oil, Coolant, Transmission Fluid, and other fluids.  Output is 1-5v over the range of 0psi to 100psig. Operates on 12-volt power.

Mounting is standard 1/8" NPT
